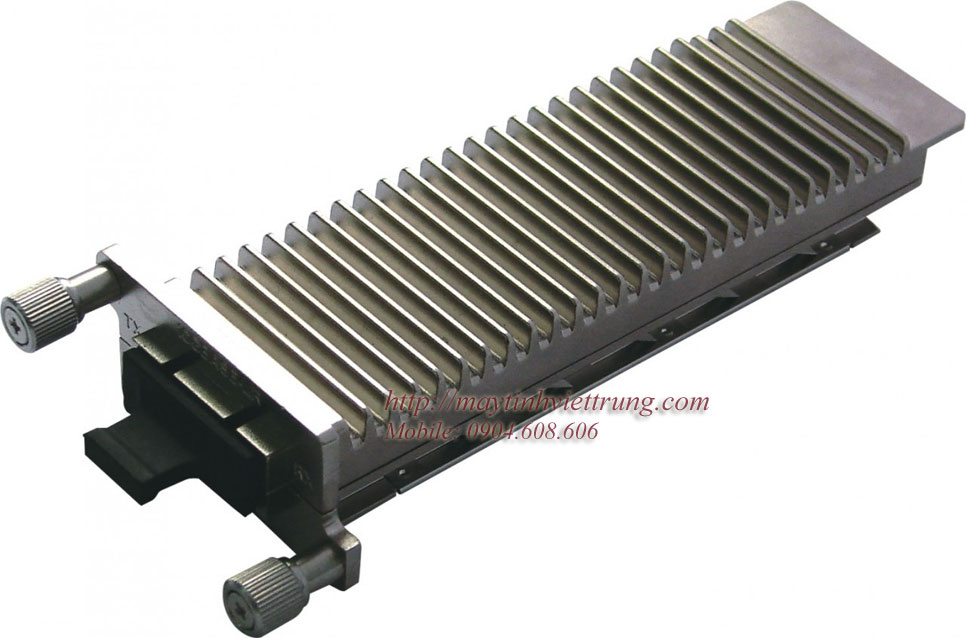

Thông tin sản phẩm : Module quang XENPAK CWDM/DWDM 10G

• XAUI Electrical Interface: 4 Lanes @ 3.125Gbit/s
• Cooled CWDM EML
• Hot Z-Pluggable
• SC-Duplex Optical Receptacle
• MDIO, DOM Support
• APD Photo-detector
• Compliant to XENPAK MSA 3.0
• Mechanical Footprint: 4.76” L x 1.42” W x 0.46” H
• Compliant to IEEE 802.3ae 10GBASE-ZR Application
• Case operating temperature: 0 to 70 °C
• REFERENCE
• IEEE 802.3ae as 10GBASE-ZR, XENPAK MSA Release3.0
• GENERAL DESCRIPTION
• XGIGA’s  10Gb/s  XENPAK  transceiver  module  XGXK-CXX96-80D  is  a  hot  pluggable  in  the Z-direction module that is usable in typical router line card applications, Storage, IP network and LAN and compliant to XENPAK MSA. The XGXK-CXX96-80D is a fully integrated 10.3Gbit/s optical transceiver module that consists of a 10.3Gbit/s optical transmitter and receiver, XAUI interface, Mux and Demux with clock and data recovery (CDR).This version of XGIGA Inc. transceiver line uses an cooled CWDM EML Laser Diode to achieve 80km over standard single mode fiber as 10GBASE-ZR of the IEEE 802.3ae.

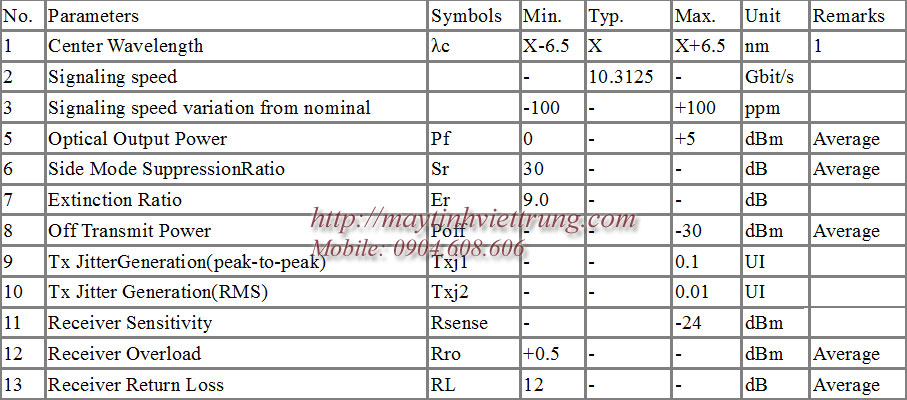

Thông số kỹ thuật : Module quang XENPAK CWDM/DWDM 10G
