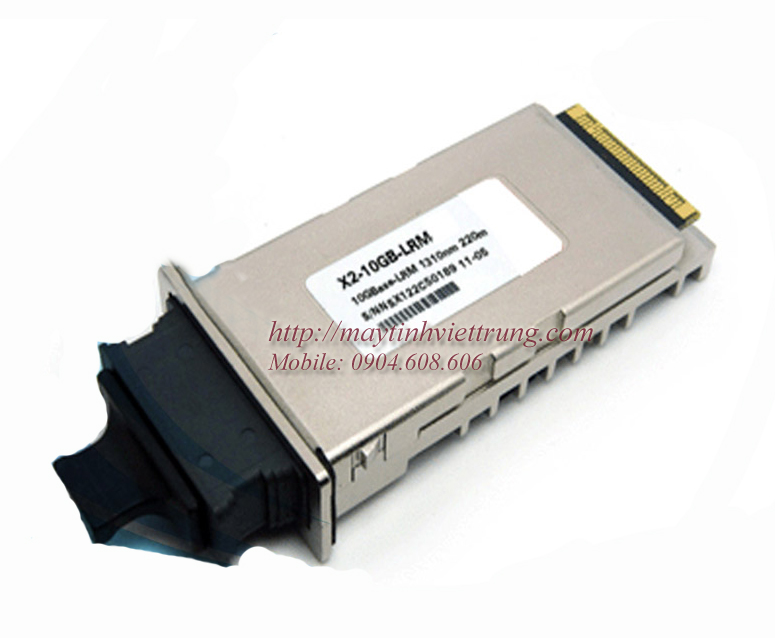

Module quang X2-10G

Module quang X2-10G

Thông tin sản phẩm : Module quang X2-10G

• Roball’s 10G X2 Transceiver is a hot pluggable in the Z-direction module that is usable in typical router line card applications, Storage, IP network and LAN and compliant to X2 MSA. The Module is a fully integrated 10.3Gbit/s optical transceiver module that consists of a 10.3Gbit/s optical transmitter and receiver, XAUI interface, Mux and Demux with clock and data recovery(CDR). Digital diagnostics functions are available via a 2-wire serial

Application

• 10GE Ethernet switches and routers
• 10GE Core-routers
• 10GE Storage
• Other 10Gbps Ethernet Transmission System

Feature

• XAUI Electrical Interface: 4 Lanes @ 3.125Gbit/s
• Hot Z-Pluggable
• SC-Duplex Optical Receptacle
• MDIO, DOM Support
• Cooled 1.3µm DFB-LD
• PIN Photo-detector
• Operating Case Temperature: -5 to 70 °C
• Compliant to IEEE 802.3ae 10GBASE-ST/LR/ER/ZR Application
• Compliant to X2 MSA
• Mechanical Footprint: 91mm L x 36mm W x 13.46* H [*Other heights available]
• RoHS Compliant

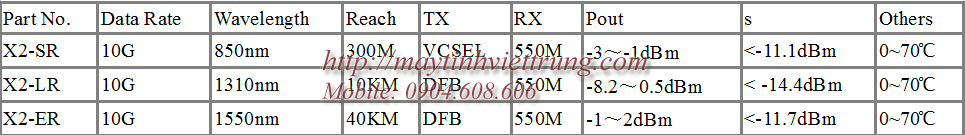

• Ordering Information:

Thông số kỹ thuật : Module quang X2-10G
